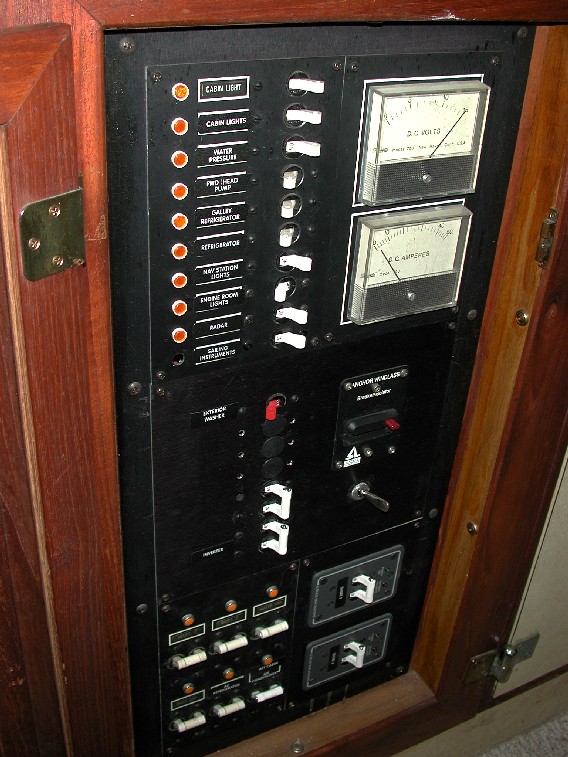

    Primary Electrical Panel - DC breakers are the top 11 single breakers
Under the analog DC Volt and Amp meter are the windlass breaker and the Wind Generator kill switch.
In the bottom right are two 30A double breakers  - one for each 110VAC 30A shore power inlets.  In addition there are 8 double ganged AC breakers.
