Windlass
Windlass Interface Display Windlass Blues





Side cover off windlass.  Final gear is large gear to far left.

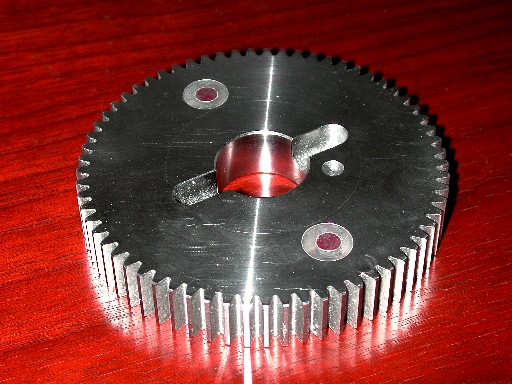

Final gear with Plexiglas plug and magnets.

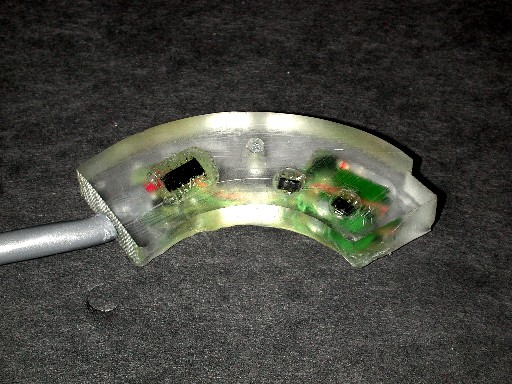

Plexiglas with Hall Effect sensors and hex inverter.  Original design was to use two sensors.  Final design only uses one.

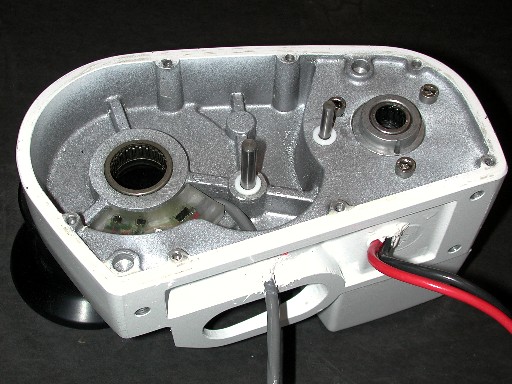

Plexiglas inserted into cavity under main gear.





New cable exiting bottom of windlass.
