Flow Charts
The Platform Flow Charts



Here are the major blocks of flow charts for LawnGrazer.  The following functions have yet to be diagramed: Main, Choose A Random Area, Detect Day/Night, Detect Rain, Check Battery/Solar Cell Voltage, Obstacle Avoidance - and what ever I have not yet thought of!

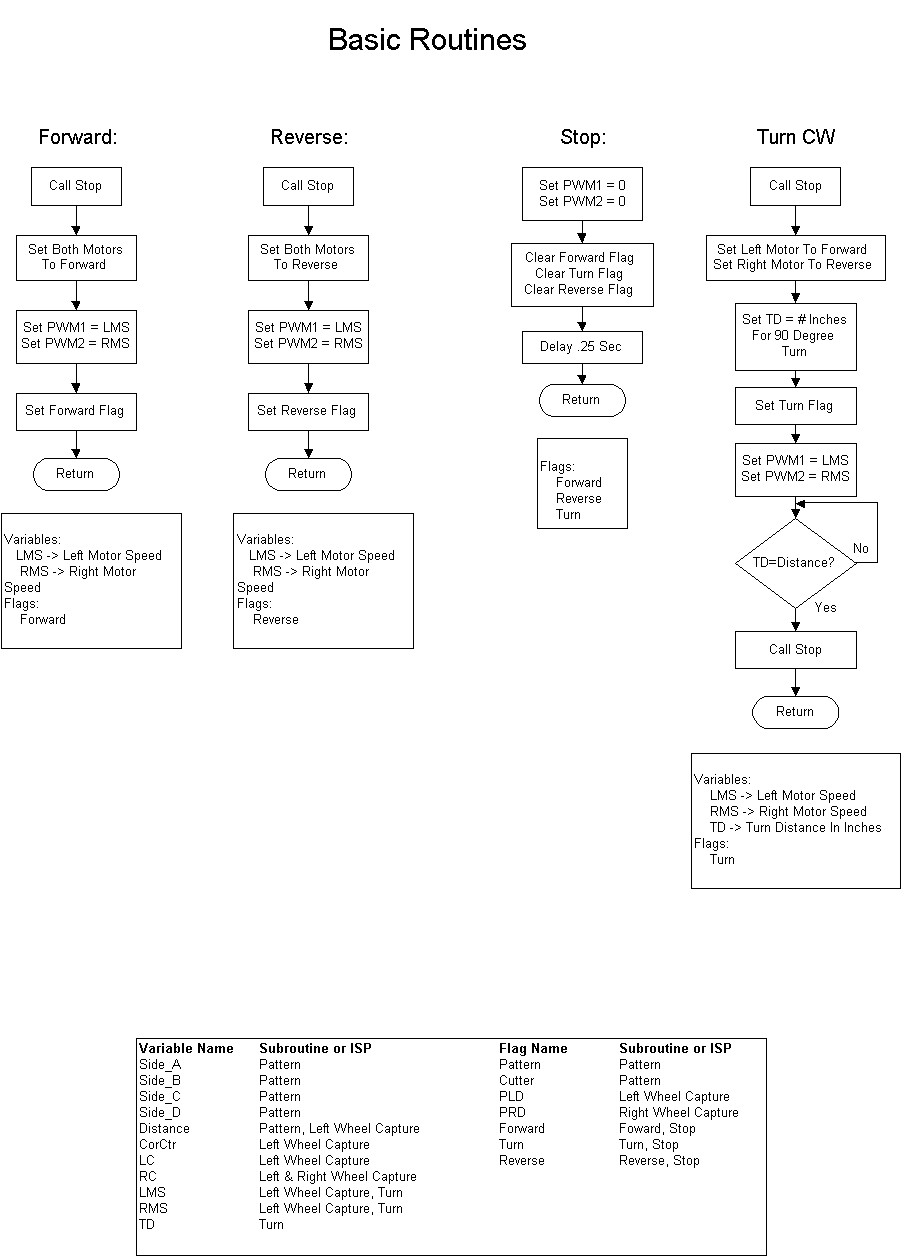

  Click to see Basic Functions

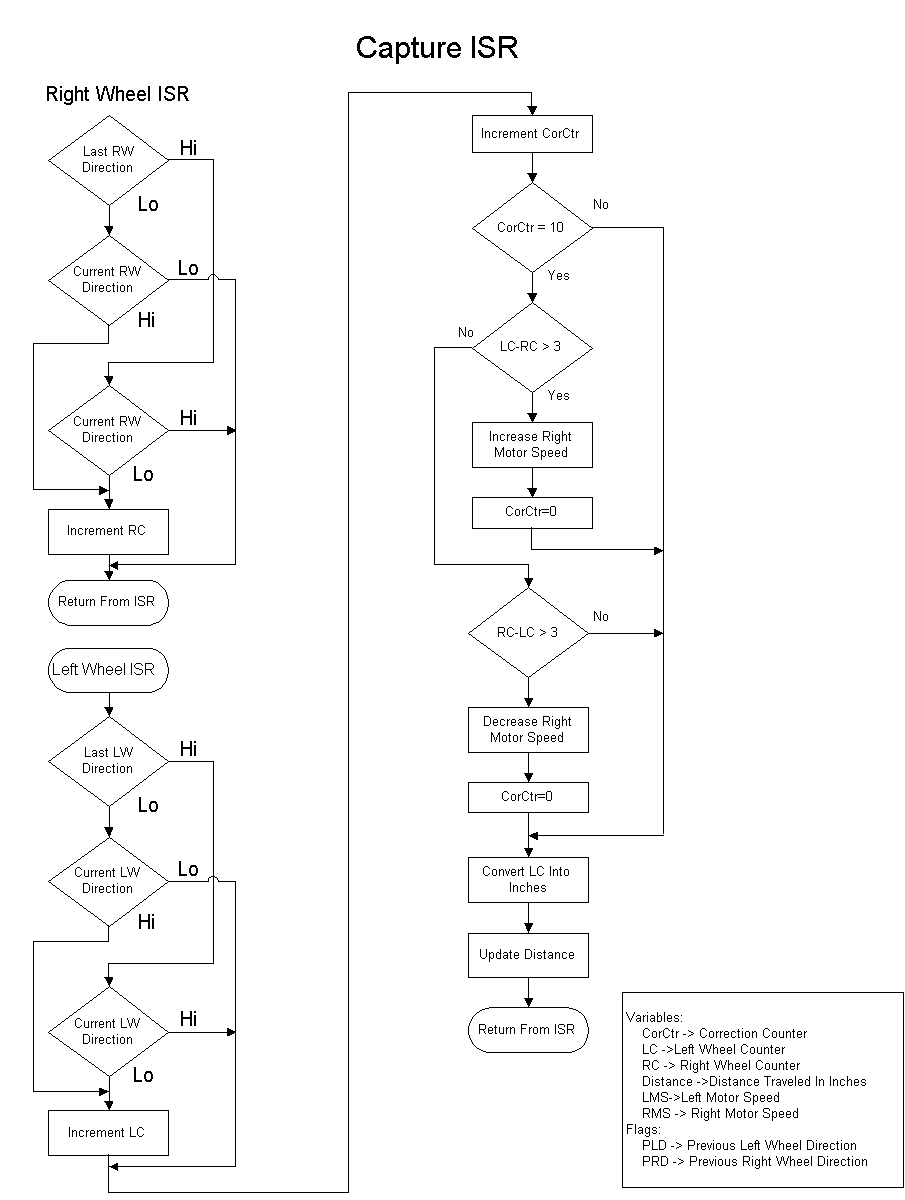

  Click to see Capture Function

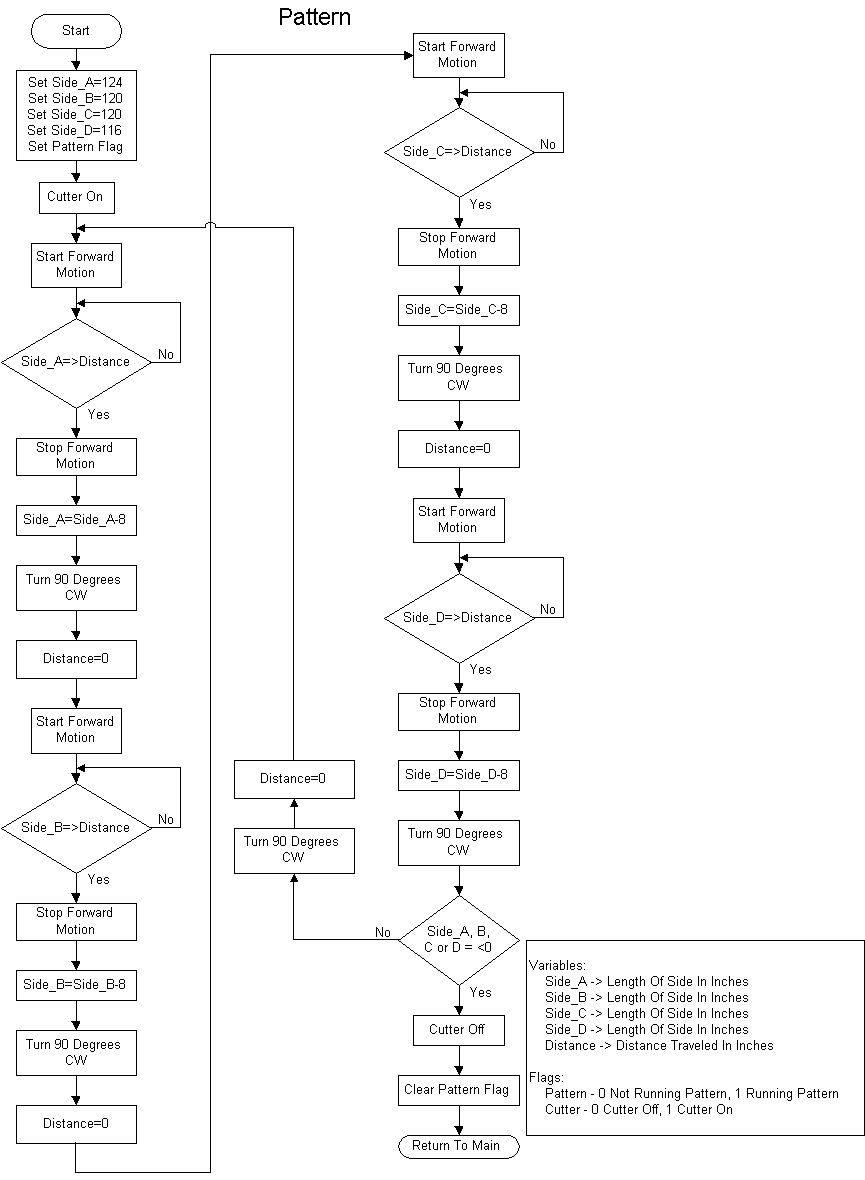

  Click to see Pattern Function
